| Manufacturer | GAI |
|---|---|
| Model | 1006 |
| Year | 2017 |
| Location | France
|
RINSING – DE-AERATION – FILLING – CAPPING – CAPSULATING
Automatic monoblock in stainless steel consisting of:

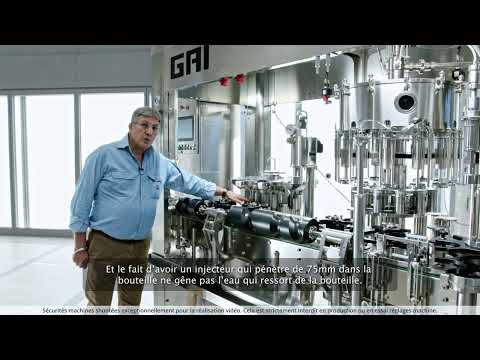

■ Stainless steel rinser for bottles with a maximum diameter of 115 mm. The jaws grip the bottle by the neck and it is mechanically turned by means of a rack. The injector penetrates the bottle to a depth of 70 mm. Injection occurs only when the bottle is present, through a system that prevents any glass/metal contact. The drainage liquid is recovered via a closed circuit without wetting the machine. The jaws return to their normal position and, when opening, allow the star wheel to place the bottle back on the conveyor. Electrically adjustable height.
■ Bottle de-aeration station. Air contained in the bottle is removed by nearly 90% using a high-efficiency vacuum pump. The bottle is then filled with a neutral gas, according to the client's choice (nitrogen or CO2). Electrically adjustable height.
■ Gravity filler with slight vacuum. The patented filling nozzles simultaneously close both the product passage and the air return tube, preventing any contact between the inside of the tank and ambient air. Centralized filling levels range from 30 to 90 mm below the neck. The filler tank is mirror-polished finish. The product feeds the machine at the lower central part of the tank to allow natural and total drainage at the end of production. The flow is regulated by a pneumatic solenoid valve. The filler nozzles have a spring-loaded cone for better centering on the saddle. Manual positioning of centralized dummy bottles for sterilization is possible. Drainage of washing and sterilization fluids from the tank is also via the top. Filling nozzles can be locked in the open position during washing and sterilization. Bottle lifting saddles are mechanically operated with spring thrust and cam return.
■ The gas injector before capping significantly reduces the amount of oxygen between the product and the stopper (the injector is equipped with a dummy bottle for sterilization).
■ The corker with an 8-blade star wheel slowly closes the stopper at a diameter of 16 mm with four hardened, ground, and polished stainless steel jaws. A vacuum is created in the bottle neck using a high-efficiency vacuum pump so that rapid stopper insertion does not create pressure, thereby avoiding dripping risks. Disassembly of the head and centering cone is very simple. The corker is equipped with a photocell to detect stopper presence.
■ Automatic capper with an 8-blade star wheel without a head. Equipped with a photocell to detect capsule presence for all types of closures.
Entry and transfer of bottles between the rinser and filler are done via an endless screw.
Work accident protection complies with CE standards.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2026 |
| Offers online | 10 |
| Last activity | Sept. 4, 2026 |
Billaudeau Conditionnement is a leading French company specializing in the packaging and conditioning of a wide range of products. With a strong commitment to quality and innovation, Billaudeau has established itself as a trusted partner for businesses looking to enhance their product presentation and ensure optimal preservation. Their expertise spans various sectors, including food, cosmetics, and pharmaceuticals, making them a versatile choice for diverse packaging needs. At the heart of Billaudeau Conditionnement's operations is a state-of-the-art facility equipped with cutting-edge technology. This allows them to offer customized packaging solutions that meet the specific requirements of their clients. Whether it’s designing unique packaging formats or implementing sustainable practices, Billaudeau is dedicated to delivering excellence in every project. The company prides itself on its customer-centric approach, working closely with clients to understand their goals and challenges. This collaborative spirit not only fosters strong relationships but also drives innovation, ensuring that Billaudeau remains at the forefront of the packaging industry. With a focus on reliability and efficiency, they are committed to helping businesses succeed by providing high-quality packaging solutions that stand out in the marketplace. In summary, Billaudeau Conditionnement is more than just a packaging provider; they are a strategic partner dedicated to enhancing product value and ensuring customer satisfaction. Their blend of experience, technology, and personalized service makes them an ideal choice for any business looking to elevate its packaging strategy.
RINSING – DE-AERATION – FILLING – CAPPING – CAPSULATING
Automatic monoblock in stainless steel consisting of:
■ Stainless steel rinser for bottles with a maximum diameter of 115 mm. The jaws grip the bottle by the neck and it is mechanically turned by means of a rack. The injector penetrates the bottle to a depth of 70 mm. Injection occurs only when the bottle is present, through a system that prevents any glass/metal contact. The drainage liquid is recovered via a closed circuit without wetting the machine. The jaws return to their normal position and, when opening, allow the star wheel to place the bottle back on the conveyor. Electrically adjustable height.
■ Bottle de-aeration station. Air contained in the bottle is removed by nearly 90% using a high-efficiency vacuum pump. The bottle is then filled with a neutral gas, according to the client's choice (nitrogen or CO2). Electrically adjustable height.
■ Gravity filler with slight vacuum. The patented filling nozzles simultaneously close both the product passage and the air return tube, preventing any contact between the inside of the tank and ambient air. Centralized filling levels range from 30 to 90 mm below the neck. The filler tank is mirror-polished finish. The product feeds the machine at the lower central part of the tank to allow natural and total drainage at the end of production. The flow is regulated by a pneumatic solenoid valve. The filler nozzles have a spring-loaded cone for better centering on the saddle. Manual positioning of centralized dummy bottles for sterilization is possible. Drainage of washing and sterilization fluids from the tank is also via the top. Filling nozzles can be locked in the open position during washing and sterilization. Bottle lifting saddles are mechanically operated with spring thrust and cam return.
■ The gas injector before capping significantly reduces the amount of oxygen between the product and the stopper (the injector is equipped with a dummy bottle for sterilization).
■ The corker with an 8-blade star wheel slowly closes the stopper at a diameter of 16 mm with four hardened, ground, and polished stainless steel jaws. A vacuum is created in the bottle neck using a high-efficiency vacuum pump so that rapid stopper insertion does not create pressure, thereby avoiding dripping risks. Disassembly of the head and centering cone is very simple. The corker is equipped with a photocell to detect stopper presence.
■ Automatic capper with an 8-blade star wheel without a head. Equipped with a photocell to detect capsule presence for all types of closures.
Entry and transfer of bottles between the rinser and filler are done via an endless screw.
Work accident protection complies with CE standards.
