| Manufacturer | Gerber |
|---|---|
| Model | Taurus II XD |
| Year | 2009 |
| Location | USA
|
Overview:

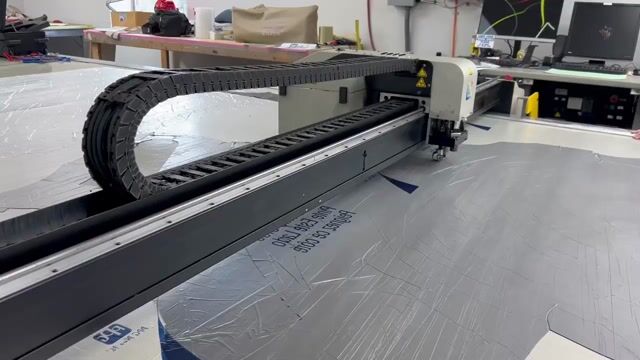

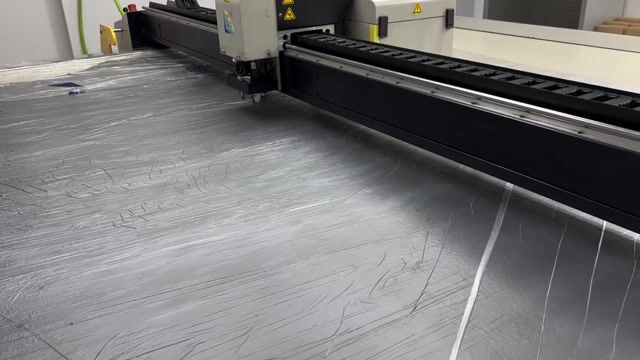

This is a two-station, static automated cutting system designed for cutting leather, cloth, vinyl, foam and carpet. The system combines a high-speed cutting beam and a cutting head with four tool holders plus an ink pen, and includes color hide scanning for perimeter detection and flaw capture. It is configured with dual high-flow vacuum generators to provide material hold-down for each cutting station.
System components:
- Two-station static cutting table with a long-lasting plastic cutting surface
- High-speed cutting beam
- Cutting head with four tool holders and one ink pen
- Color hide scanning with 0.5 mm resolution for hide perimeter and flaw capture
- Solid-State Drive PC for cutting control and a Solid-State Drive PC for nesting
- Backup Hard Disk Drives for both computers
Vacuum system:
- Dual 7.5 kW (10 hp) vacuum blowers, one blower per cutting station
- Independent gate valves for each vacuum mounted to the cutting frame
- Integrated electric motors with low current start and centrifugal vacuum generators for high flow
Performance:
- Maximum cutting speed: 1.27 m/sec (50 in/sec)
- Maximum cutting acceleration: 10.16 m/sec2 (400 in/sec2)
Software and controls:
- PC-based software in a Windows environment (lists Intel or AMD processors and Windows XP Professional)
- Ability to import NC, DXF, AAMA-DXF and IGES files
- Features include “Zero-Buffer” cutting, database recording of production statistics per hide, up to four flaw zones, up to three character zones, and available automatic and manual nesting solutions
System dimensions and requirements:
- Machine: 2.74 x 7.31 m (9 x 24 ft); footprint: 3.6 x 7.31 m (11.8 x 24 ft)
- Cutting area per station: 2.74 x 3.20 m (9 x 10.5 ft)
- Table height: 0.82 to 0.85 m (32.5 to 33.5 in)
- Overall machine (dual-station XD): Length 24 ft; Width 11.8 ft
- Cutting capacity note: can cut a 65 sq/ft leather hide while holding another simultaneously
Power and utilities:
- Vacuum blowers (60 Hz): 208–230 VAC at 25.6–23.4 A (3 phase per blower) or 460 VAC at 11.7 A (3 phase per blower)
- Vacuum blowers (50 Hz): 190–220 VAC at 29–26 A (3 phase per blower) or 380–415 VAC at 14.5–13.3 A (3 phase per blower)
- Drive system: 220 VAC at 15 A (1 phase)
- Compressed air: 5.5–8.3 bar (80–120 psi) @ 14.15 lpm (0.5 scfm)
Optional components (listed):
- Laser pointer for pattern scanning
- 2 Variable Frequency Drives
- Water separator
- 2 Heavy duty protective cable ramps
Notes:
All specifications and features are taken from the provided product information. No additional condition statements or testing/refurbishment claims are included.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
System Components
- Two-station, static cutting table
Long-lasting, plastic cutting surface
Dual high-flow vacuum generators
- High speed cutting beam
- Cutting head with four tool holders and one ink pen
- Color hide scanning for hide perimeter and flaw capture
- Solid-State Drive PC for cutting control
- Solid-State Drive PC for nesting
- Backup Hard Disk Drives for both computers
Vacuum System
- Dual 7.5KW (10 hp) vacuum blowers installed for maximum material hold-down
- Independent gate valves for each vacuum mounted onto the cutting frame
- Efficient, integrated electric motors with low current start and a powerful centrifugal vacuum generator
- Each cutting station contains its own blower for consistent, powerful flow
Maximum Cutting Speed
- 1.27 m/sec (50 in/sec)
Maximum Cutting Acceleration
- 10.16 m/sec2 (400 in/sec2)
Key Features
- PC-based software in Windows ® environment
- Ability to import data from many data types including NC, DXF, AAMA-DXF, IGES
- "Zero-Buffer" cutting
- Capability to cut leather, cloth, vinyl, foam and carpet
- Color hide scanning with resolution of 0.5 mm
- Database to record production statistics for every hide cut
- Available with automatic and manual nesting solutions
- Up to four flaw zones to improve quality and nesting efficiencies
- Up to three character zones to provide positional part cutting
- Durable and easily installed cutting surface
- AC brushless servos
System Dimensions and Requirements
Dimensions
- Machine: 2.74 x 7.31 m (9 x 24 ft)
- Footprint: 3.6 x 7.31 m (11.8 x 24 ft)
- Cutting area per station: 2.74 x 3.20 m (9 x 10.5 ft)
- Table height: 0.82 to 0.85 m (32.5 to 33.5 in)
PC and Operating System
- Intel or AMD processors
- Windows XP Professional
Power
- 60 Hz vacuum blowers (2)
208-230 VAC at 25.6-23.4 amps (3 phase per blower)
460 VAC at 11.7 amps (3 phase per blower)
- 50 Hz vacuum blowers (2)
190-220 VAC at 29-26 amps (3 phase per blower)
380-415 VAC at 14.5-13.3 amps (3 phase per blower)
- Drive system
220 VAC at 15 amps (1 phase)
Compressed Air
- 5.5 - 8.3 bar (80 -120 psi) @ 14.15lpm (0.5 scfm)
Included Optional Components
- Laser pointer: Facilitates pattern scanning
- 2 Variable Frequency Drives
- A Water Separator
- 2 Heavy Duty Protective Cable Ramps
Overall machine (dual-station XD)
Length: 24ft
Width: 11.8 ft
It can cut a 65 sq/ft leather hide while holding another simultaneously.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
